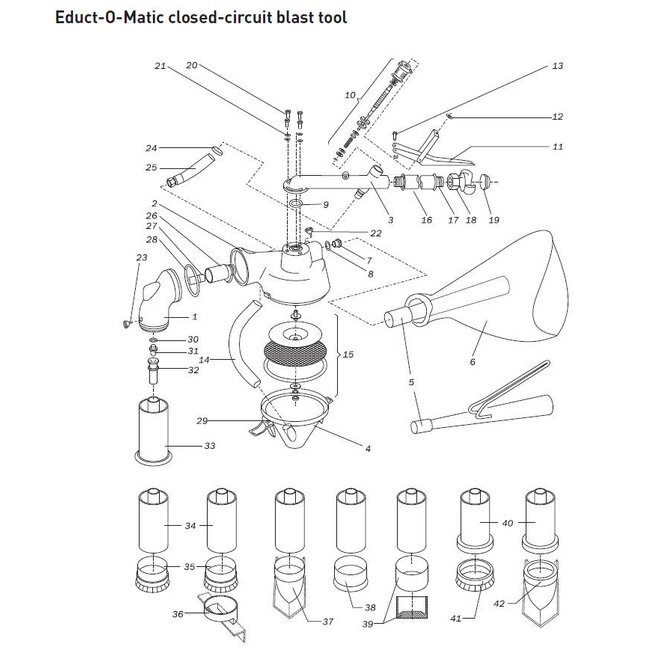

ONDERDELEN STOFVRIJ STRAAL UNIT EDUCT-O-MATIC
De educt-O-Matic is de compacte portable recirculeer straalunit, die overal kan worden ingezet en welk slechts 2.5m³/min perslucht nodig heeft bij 6 bar. Stralen, stof afzuigen en straalmiddelrecycling word
Lees meer.
| Pos. nr. | Beschrijving | Pos. nr. | Beschrijving |
| 1 | Blasthead | 22 | Thumb screw - N.A. |
| 2 | Main body | 23 | Thumb screw - N.A. |
| 3 | Valve body | 24 | Hose clamp |
| 4 | Abrasive container with lock and hose | 25 | Air hose |
| 5 | Ejector pipe | 26 | Rubber sleeve |
| 6 | Dust bag | 27 | Blast head nipple 3/8"x 4.1/4" |
| 7 | Suction jet | 28 | O-ring |
| 8 | Jet gasket | 29 | Locking device - N.A. |
| 9 | O-ring | 30 | Jet gasket |
| 10 | Valve assembly | 31 | Blast jet |
| 11 | Valve handle assembly | 32 | Nozzle 9 mm. - Tungsten-Carbide |
| 12 | Snap ring | 33 | Standard adaptor |
| 13 | Handle pin | 34 | Master adaptor |
| 14 | Abrasive hose | 35 | Serrated attachment |
| 15 | Screen assembly | 36 | Edge attachment |
| 16 | Rubber tube | 37 | Angle attachment |
| 17 | Pipe nipple | 38 | Flat lip attachment |
| 18 | Coupling KIG 1/2" | 39 | Blank end |
| 19 | Gasket for SKG | 40 | Brush adaptor |
| 20 | Screw - N.A. | 41 | Round brush |
| 21 | Washer - N.A. | 42 | Angle brush |
N.A. = niet beschikbaar
